Full Specification
| Item | Media Converter |
|---|---|
| Converter Type | ONU |
- Type of the optical interface: SC / UPC connector
- Interface Type: 1 x 10/100/1000Mbps
- Auto-adaptive Ethernet interfaces: 10/100/1000M Full/Half
- RJ45 connector
- Receiving Sensitivity: 28dBm
- Transmitting Optical Power: 0~+4dBm
- Firewall: DDOS, Filtering Based on ACL / MAC / URL
- Power Supply: 12V 0.5A
- Dimension (L x W x H): 82 x 82 x 25mm
Description

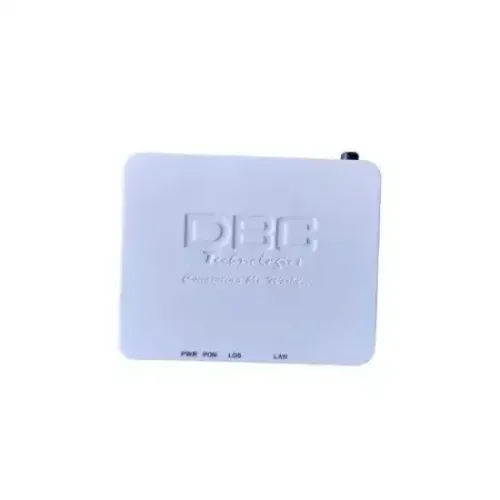

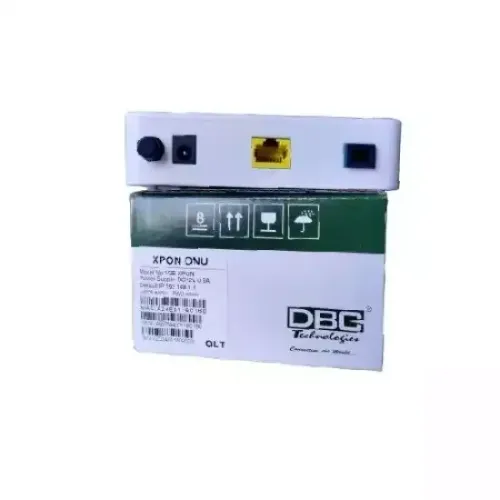

This DBC is a 1 port XPON ONU that supports dual-mode EPON and GPON. It can also be operated in a wide temperature environment. Also with firewall function. It meets FTTO, FTTD, FTTH, SOHO, video surveillance, and other requirements. Its transmission distance is 20 km. It is fully compatible with
